Commercial access and security
A compact, durable door system built around the way your opening works.
Rolling steel service doors coil above the opening, preserve valuable floor and wall space, and provide dependable security for warehouses, service facilities, counters, storefronts, and mixed-use commercial buildings.
Preliminary planning information. Exact sizes, clearances, gauges, thermal values, finishes, and operators require an approved manufacturer/model and verified field dimensions. Revision: Draft 2026-07-24.
Where it fits
BPT reviews how people, vehicles, inventory, weather, security, and the building structure come together before narrowing the product line.
Standard planning basis
Available options
Materials and operation
Material, finish, insulation, operator, controls, and seals must work with the selected opening, traffic pattern, exposure, and maintenance plan.
Galvanized steel is the common planning basis; stainless steel and other approved curtain materials depend on the selected assembly.
Formed or structural steel components selected for the opening size, exposure, mounting surface, and operating method.
Factory finish, powder coat, painted finish, galvanized steel, and selected stainless options are confirmed by product line.
Where thermal performance or air control is a priority, review the insulated rolling steel door category instead of assuming a single-skin curtain will meet the project goal.
Appropriate for smaller, lighter openings where the selected assembly can be operated safely by hand.
Provides mechanical advantage for larger curtains without requiring an electric operator.
Supports frequent operation and can be coordinated with controls, safety devices, access systems, and available power.
Planning dimensions
Do not reserve only the clear opening. The coil, brackets, guides, operator, hood, service access, and nearby building systems all require coordination.
Final clear-opening width must be field verified before fabrication or ordering.
Curtain height affects coil diameter, barrel selection, hood size, and operator requirements.
Confirm coil diameter, hood, brackets, structure, utilities, and operator clearance for the selected assembly.
Confirm guide depth, bracket plates, motor or chain-hoist location, and service access.
Coordinate with beams, sprinklers, conduit, lights, ductwork, and other overhead conflicts.
Generic rolling-door baseline
Use these ranges only to reserve preliminary space. The selected manufacturer, model, opening size, wind or fire requirements, operator, and field conditions control the final dimensions.
Opening coordination
Opening viewShows the curtain, guides, hood, bottom bar, and typical operator location as a coordinated assembly.
Open full drawing
Section viewShows how the hood and coiled curtain sit above the opening and how the door travels to the floor.
Open full drawing
Detail viewShows how the curtain is held at the jamb and the wall space needed for guides, fasteners, and operation.
Open full drawingRecord the rough opening, headroom, sideroom, mounting surfaces, overhead conflicts, and drive-side service space before selecting an assembly.
Show the wall and lintel, barrel and brackets, hood, curtain path, guide, bottom bar, floor line, seals, and operator projection.
Show opening limits, both guides and fasteners, bracket-to-bracket hood width, curtain slats, bottom bar, and drive-side operator.
Show the jamb material, wall angle, guide channel, anchors, curtain edge, operating gaps, and windlocks when the approved design requires them.
Component anatomy
Interlocking slats form the moving barrier and are selected by material, profile, gauge, exposure, security needs, and opening size.
Vertical assemblies retain the curtain edges and transfer operational and wind forces into the supporting construction.
The steel pipe and counterbalance assembly supports the curtain and helps control its travel.
Head plates support the barrel, counterbalance components, and operator at each side of the opening.
A formed metal enclosure protects the coiled curtain and helps create a finished appearance where specified.
The reinforced lower edge stabilizes the curtain and can carry seals, locks, or a monitored sensing edge.
Push-up, chain-hoist, or electric operation is selected around curtain size, cycle needs, controls, safety, and available power.
Field context

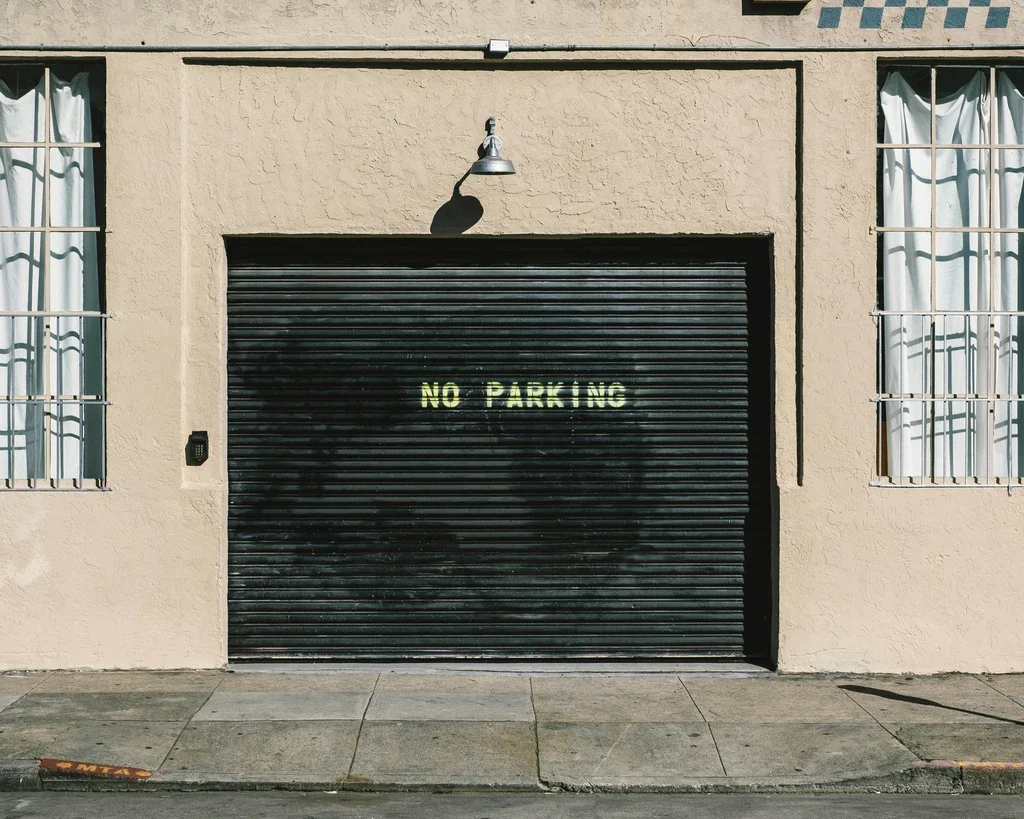

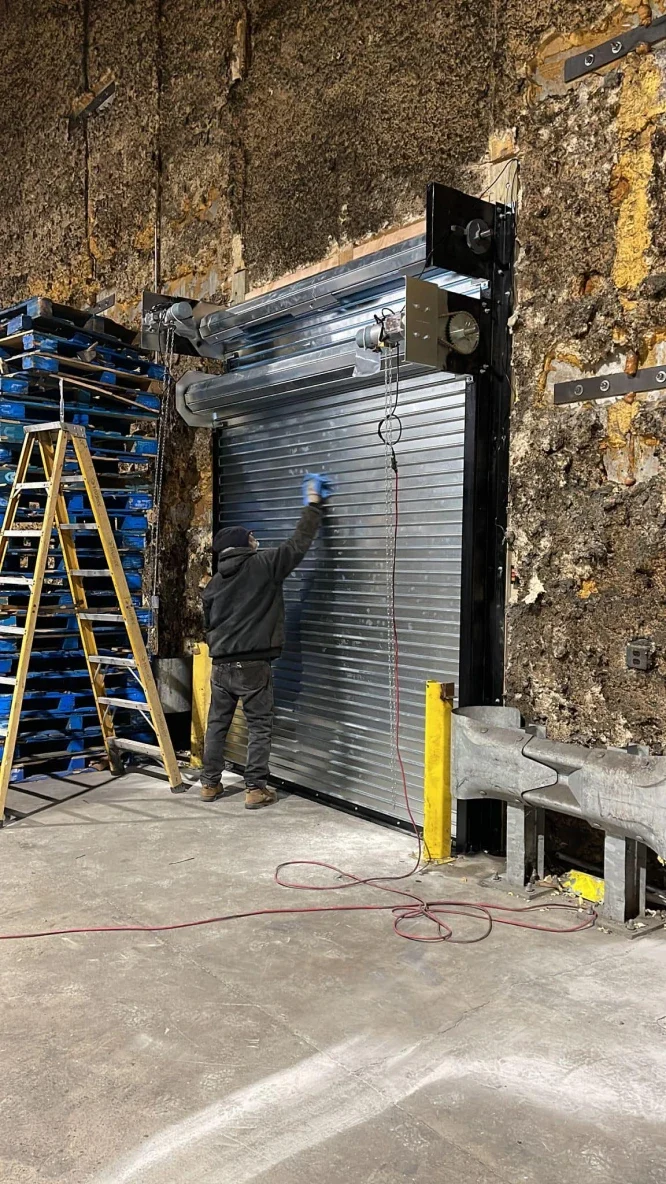

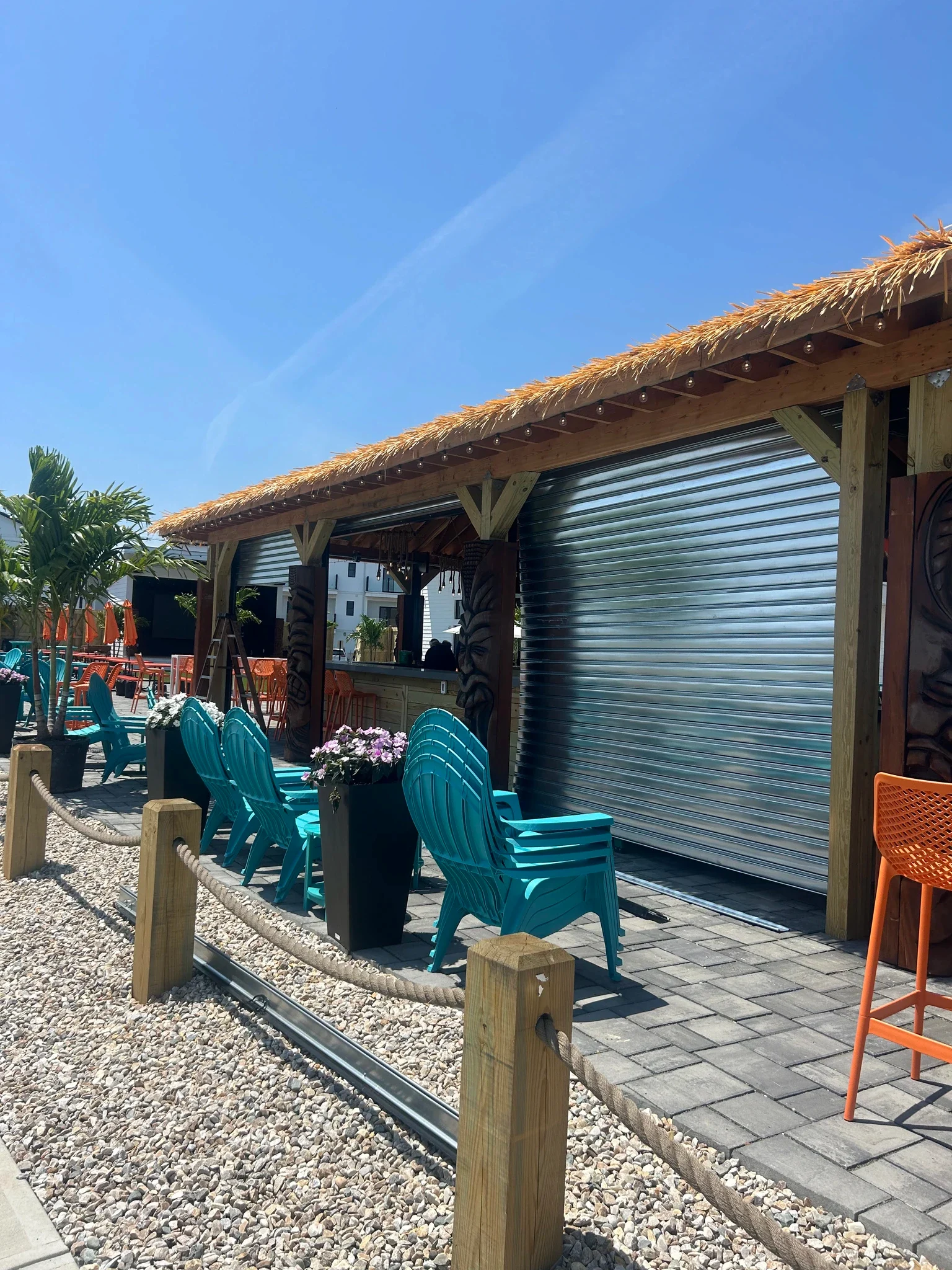

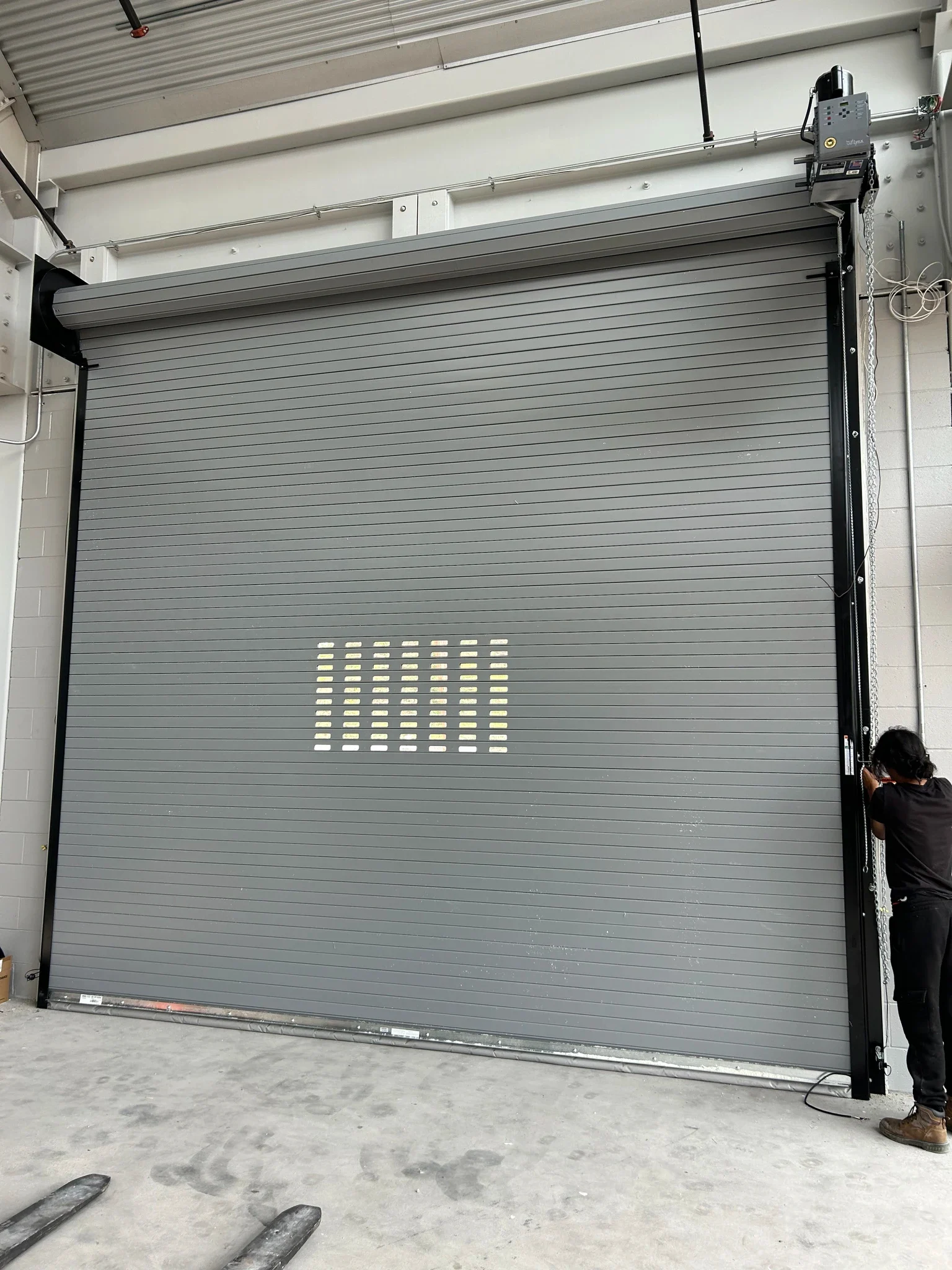

These BPT field images show the kinds of conditions that influence the final recommendation. Confirmed insulated-product photography will replace planning-context images after asset approval.
Architect and contractor resources
Review applications, decisions, component anatomy, coordination notes, and diagrammatic elevations before requesting a project-specific quote.
Category-level planning information only. Exact dimensions, gauges, finishes, wind ratings, components, and operators depend on the selected manufacturer/model and verified field conditions.
Jovany technical approval pendingAdded after Jovany confirms the approved manufacturer and model.
Technical references
