Thermal control and commercial access
Rolling-door security with a curtain designed to reduce heat transfer and air movement.
Insulated rolling steel doors support conditioned warehouses, loading areas, service buildings, and commercial openings where security, compact storage, and improved environmental separation need to work together.
Preliminary planning information. Exact sizes, clearances, gauges, thermal values, finishes, and operators require an approved manufacturer/model and verified field dimensions. Revision: Draft 2026-07-24.
Where it fits
BPT reviews how people, vehicles, inventory, weather, security, and the building structure come together before narrowing the product line.
Standard planning basis
Available options
Materials and operation
Material, finish, insulation, operator, controls, and seals must work with the selected opening, traffic pattern, exposure, and maintenance plan.
Interlocking double-wall or insulated metal slats, with core and exterior metal determined by the approved product line.
Steel components selected for the heavier curtain, opening size, mounting surface, exposure, and operating method.
Factory finish, powder coat, painted finish, galvanized steel, and selected stainless options are confirmed by product line.
Published R-value, U-factor, air leakage, and perimeter performance must come from the selected manufacturer/model. The curtain alone does not describe whole-opening performance.
Availability depends on opening size, curtain weight, selected counterbalance system, and safe operating force.
Often preferred for larger or frequently used insulated doors and coordinated with controls, monitored safety devices, and available power.
Key switches, push stations, remotes, access systems, interlocks, and other control methods are reviewed as part of the operator package.
Planning dimensions
Do not reserve only the clear opening. The coil, brackets, guides, operator, hood, service access, and nearby building systems all require coordination.
Final clear-opening width and structural support must be verified before fabrication or ordering.
Curtain height and insulated slat profile materially affect coil diameter and headroom.
Confirm coil diameter, hood, brackets, structure, utilities, and operator clearance.
Confirm guide depth, bracket plates, motor or chain-hoist location, and service access.
Coordinate with beams, sprinklers, conduit, lights, ductwork, and other overhead conflicts.
Generic rolling-door baseline
Use these ranges only to reserve preliminary space. The selected manufacturer, model, opening size, wind or fire requirements, operator, and field conditions control the final dimensions.
Opening coordination
Opening viewShows the double-wall curtain, guides, hood, bottom bar, and typical operator location as one assembly.
Open full drawing
Section viewShows the space needed above the opening for the insulated curtain, hood, guides, seals, and bottom bar.
Open full drawing
Detail viewShows how the insulated curtain is held at the jamb and the wall space needed for guides and fasteners.
Open full drawingRecord the rough opening, headroom, sideroom, mounting surfaces, overhead conflicts, and drive-side service space before selecting an assembly.
Show the wall and lintel, barrel and brackets, hood, curtain path, guide, bottom bar, floor line, seals, and operator projection.
Show opening limits, both guides and fasteners, bracket-to-bracket hood width, curtain slats, bottom bar, and drive-side operator.
Show the jamb material, wall angle, guide channel, anchors, curtain edge, operating gaps, and windlocks when the approved design requires them.
Component anatomy
Interlocking double-wall or insulated slats form the moving barrier and require model-specific thermal and dimensional data.
Vertical assemblies retain the thicker curtain edges and transfer operational and wind forces to the supporting construction.
The steel pipe and counterbalance assembly supports the heavier curtain and helps control travel.
Head plates support the barrel, counterbalance components, and operator at each side of the opening.
A formed metal enclosure protects the larger coiled curtain and must be coordinated with available headroom.
Perimeter and bottom details help manage drafts and air movement, but performance depends on the full installed assembly.
Chain-hoist or electric operation is selected around curtain weight, cycle needs, controls, safety, and available power.
Field context

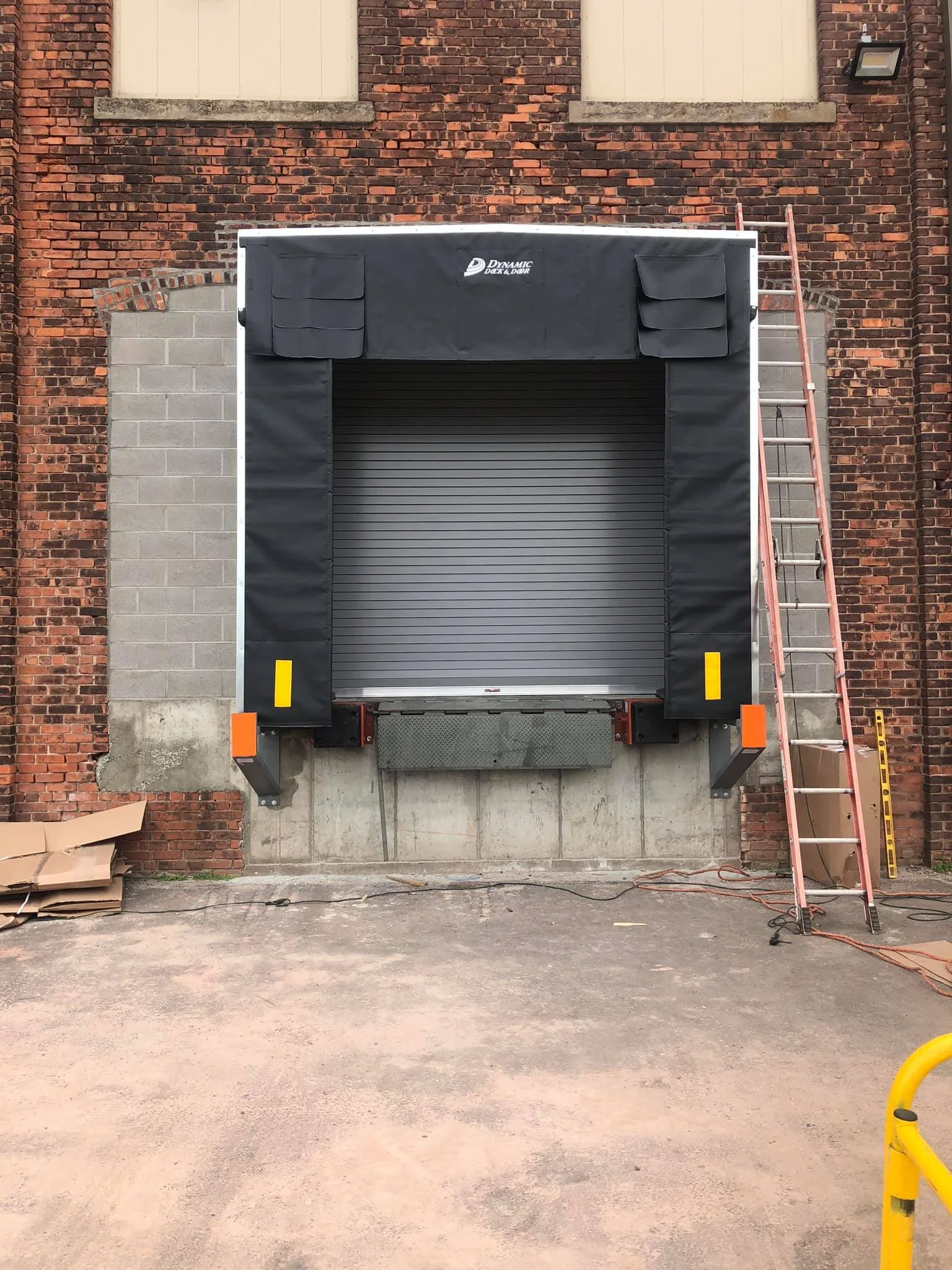

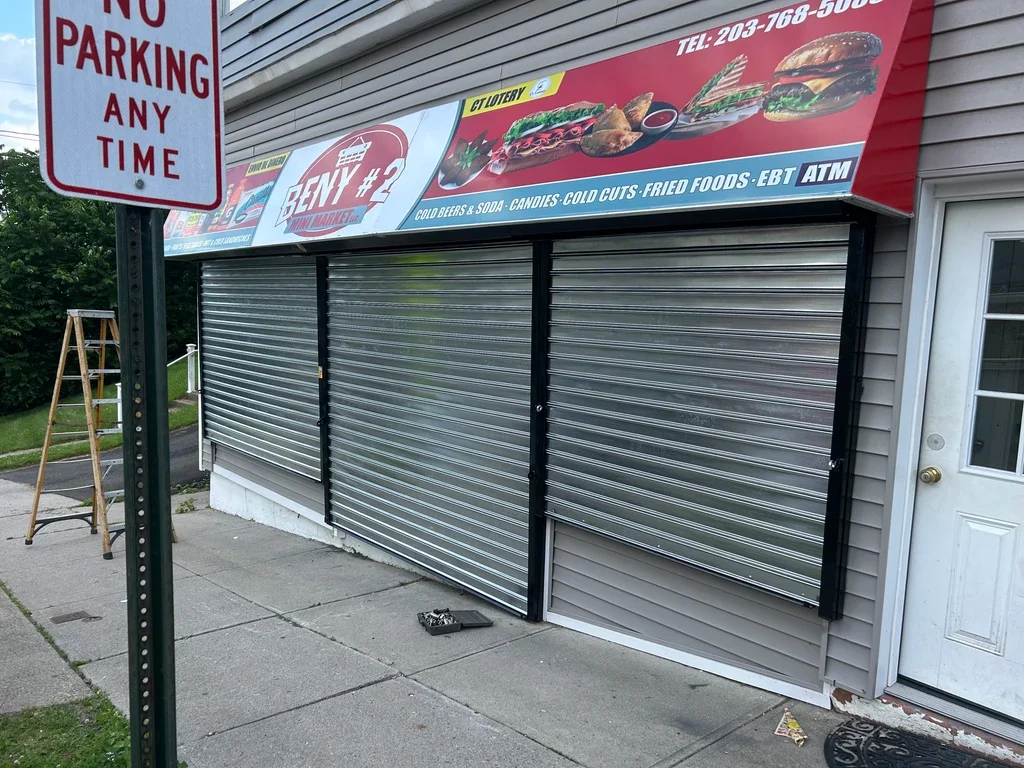

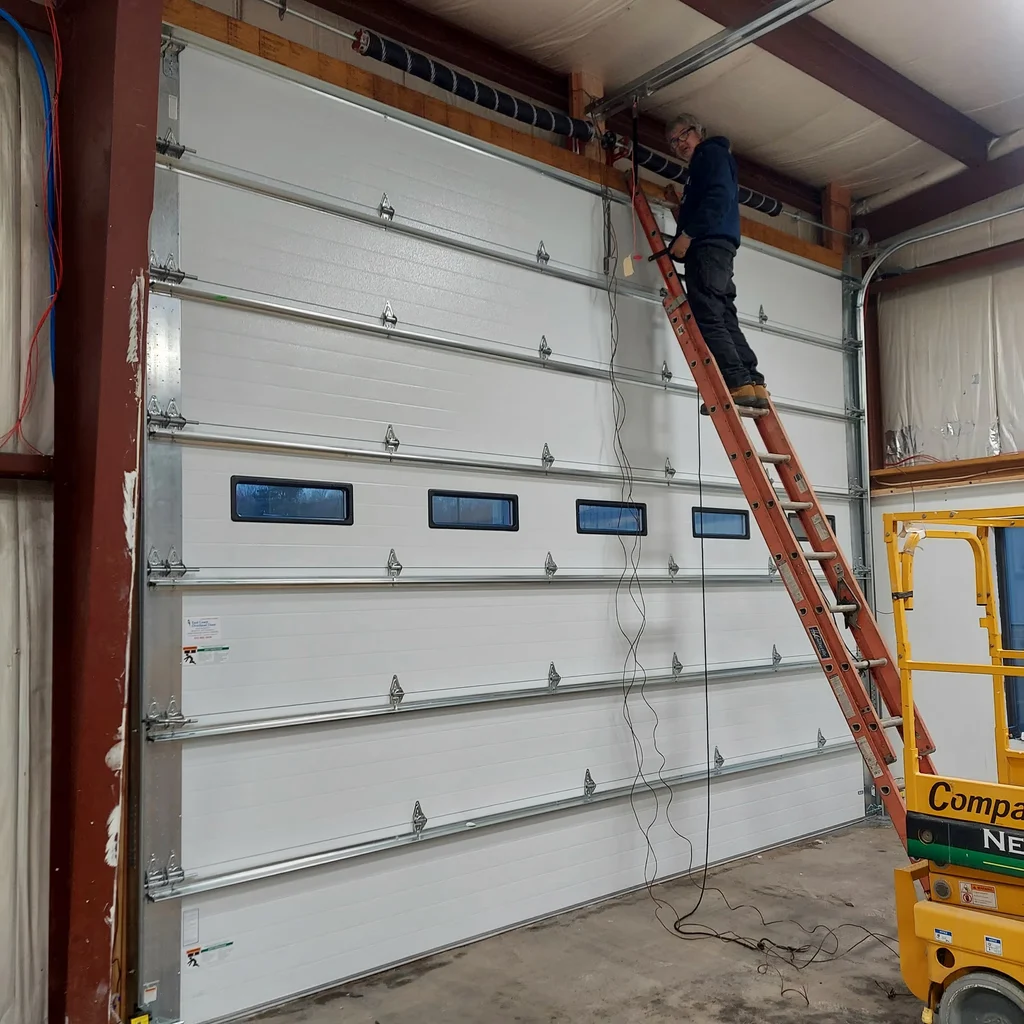

These BPT field images show the kinds of conditions that influence the final recommendation. Confirmed insulated-product photography will replace planning-context images after asset approval.
